ED VECTOR+ RECESSEDED VECTOR+ RECESSED
Architectural Linear Recessed Luminaire
- Architectural linear luminaire with direct distribution.
- Light source: LED board (5.5"/11"/22"/24").
- Even illumination is provided by variety of high efficiency optic lenses.

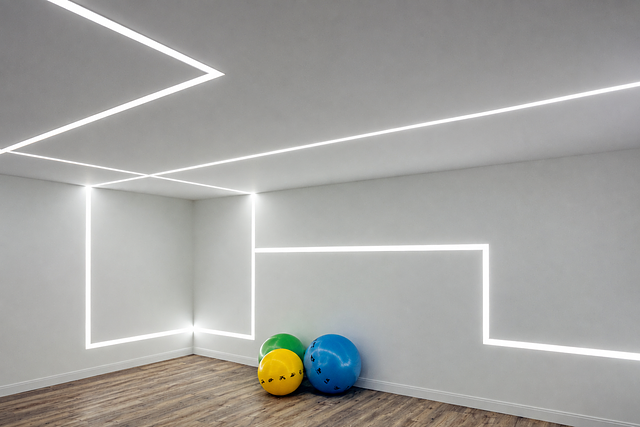

- Available for row mounted installations in various lengths.
- Suitable for recessed, recessed T-Bar and damp area installations.
- Extruded aluminum body comes in white, black or grey finish.
- Also available with various custom color options.
- LED Strips are rated for 60,000hrs.
- L80 with +90 CRI.
- Has a proven record in office, commercial and retail installations.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL Standards.
Resources
Materials
- Aluminum
- Polycarbonate
Mounting
- Recessed
Color / Finish
- Black
- Custom
- Grey
- White
Lumens
- 515 Lm
- 525 Lm
- 535 Lm
- 720 Lm
- 735 Lm
- 750 Lm
- 1050 Lm
- 1080 Lm
Watts
- 5 w
- 7 w
- 10 w
CCT
- 3000K
- 3500K
- 4000K
CRI
- 85 CRI
- 90 CRI
Circuit
- Single Circuit
Controls Options
- Daylight Sensor
- Occupancy Sensor
Dimensions
- H: 2.75 In. L: 96 In. W: 2.56 In.
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- DALI
- DMX
- ELV
- Triac
Dimming Range
- 1%
- 10%
- < 1%
Distribution
- Direct
- Wall Wash
Dynamic LED Color
- BIOS Dynamic
- RGBW
- Tunable White
Lamp Life
- 60000 hrs
Lamp Source
- LED
Listings
- cULus
Emergency Options
- Integral EM Battery
Ratings & Compliance
- Damp
- Declare
- Made in Canada
Static LED Color
- BIOS Static
Voltage
- 120 V
- 277 V
- 347 V
Warranty
- 5 yr
