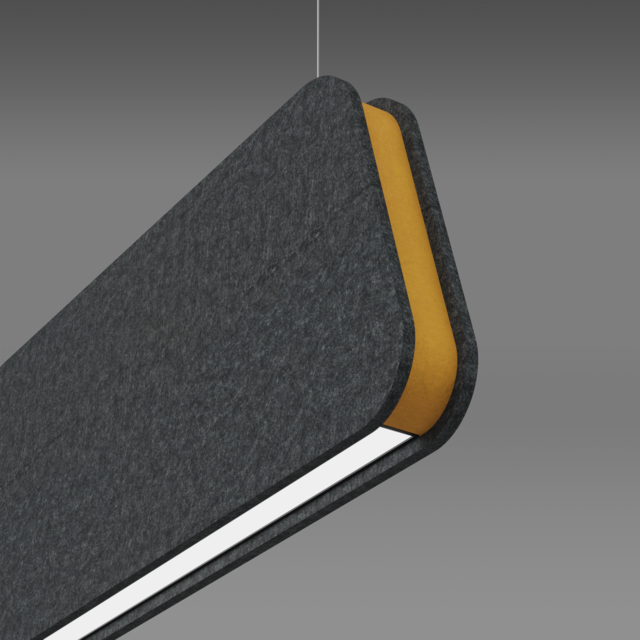

Sonic VECTOR+ (TS)Sonic VECTOR+ (TS)
Acoustic Trapezoid Shade Luminaire
- Architectural sound absorbing Eco Felt Acoustic panel.
- Made from recyclable plastic material available in different thicknesses.
- Class1 Fire rated with 0.7 Noise Reduction Coefficient/1” Acoustic.
- Light source: LED Board (5.5”/11”/22”/24”).
- Diffused illumination is provided by frosted opal lens.
- Extruded aluminum body comes with built-in-driver and available in white, black or grey finish.
- Also available with custom colour options.
- LED Strips are rated for 60,000hrs.
- L80 with +90 CRI.
- Has a proven record in office, commercial and retail installations.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL Standards.
Resources
Materials
- Aluminum
- Felt
- Polycarbonate
Mounting
- Suspended
Color / Finish
- Black
- Custom
- Grey
- White
Lumens
- 2080 Lm
- 2120 Lm
- 2160 Lm
- 3115 Lm
- 3180 Lm
- 3245 Lm
- 4115 Lm
- 4240 Lm
- 4325 Lm
Watts
- 20 w
- 30 w
- 40 w
CCT
- 3000K
- 3500K
- 4000K
CRI
- 85 CRI
Circuit
- Single Circuit
Dimensions
- H: 16 In. L: 30 In. W: 2.75 In.
- H: 18 In. L: 40 In. W: 2.75 In.
- H: 24 In. L: 50 In. W: 2.75 In.
Dimming Protocol
- 0-10 V
- DALI
- DMX
- ELV
- Triac
Dimming Range
- 1%
- 10%
- < 1%
Dynamic LED Color
- BIOS Dynamic
- Tunable White
Lamp Life
- 60000 hrs
Lamp Source
- LED
Listings
- cULus
Ratings & Compliance
- Declare
- Fire Rated
- Made in Canada
Static LED Color
- BIOS Static
Voltage
- 120 V
- 277 V
- 347 V
Warranty
- 5 yr
