Sonic RING+ (FV)

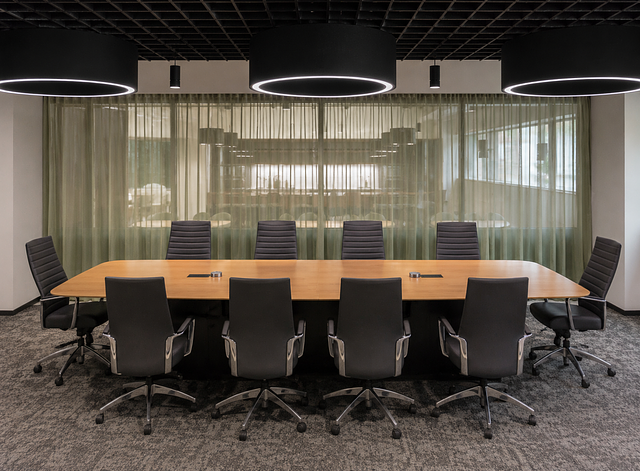

2023-06-26 - Sonic Rings via P3Architecture 03.jpg
20210729_091534.jpgSonic RING+ (FV)
Acoustic Ring Luminaire
- Architectural sound absorbing Eco Felt Acoustic panel.
- Made from recyclable plastic material available in different thicknesses.
- Class1 Fire rated with 0.7 Noise Reduction Coefficient/1” Acoustic.
- Light source: LED 5.5“ Board. Diffused illumination is provided by frosted opal lens.
- Extruded aluminum body comes with built-in-driver and available in white, black or grey finish.
- Sleek body of the luminaire combines two aluminum side with laser cut metal top enclosure.
- LED Strips are rated for 60,000hrs.
- L80 with +90 CRI.
- Has a proven record in office, commercial and retail installations.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL Standards.
Resources
Materials
- Aluminum
- Felt
- Metal
Mounting
- Recessed
- Suspended
Shape
- Ring
Color / Finish
- Black
- Custom
- Grey
- White
Lumens
- 2205 Lm
- 2250 Lm
- 2295 Lm
- 4410 Lm
- 4500 Lm
- 4590 Lm
- 6615 Lm
- 6750 Lm
- 6885 Lm
Watts
- 25 w
- 50 w
- 75 w
CCT
- 3000K
- 3500K
- 4000K
CRI
- 85 CRI
Circuit
- Single Circuit
Diameter
- 5 In.
- 24 In.
- 36 In.
- 48 In.
- 60 In.
Dimensions
- H: 12 In. L: 24.875 In. W: 24.875 In.
- H: 16 In. L: 36.675 In. W: 36.675 In.
- H: 24 In. L: 48.485 In. W: 48.485 In.
Dimming Protocol
- 0-10 V
- DALI
- DMX
- ELV
- Triac
Dimming Range
- 1%
- 10%
- < 1%
Dynamic LED Color
- BIOS Dynamic
- Tunable White
Lamp Life
- 60000 hrs
Lamp Source
- LED
Listings
- CSA
- UL
Ratings & Compliance
- Declare
- Fire Rated
- Made in Canada
Static LED Color
- BIOS Static
Voltage
- 120 V
- 277 V
- 347 V
Warranty
- 5 yr

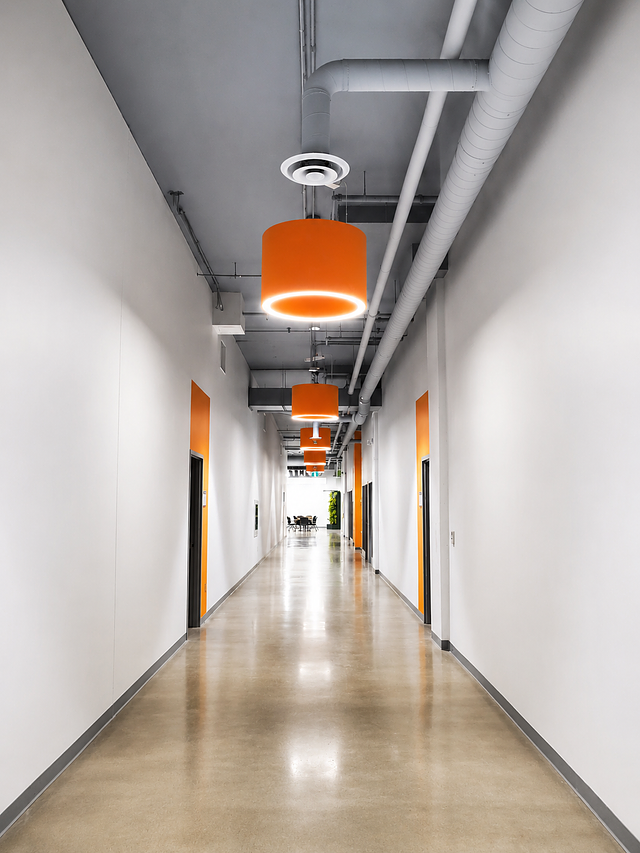

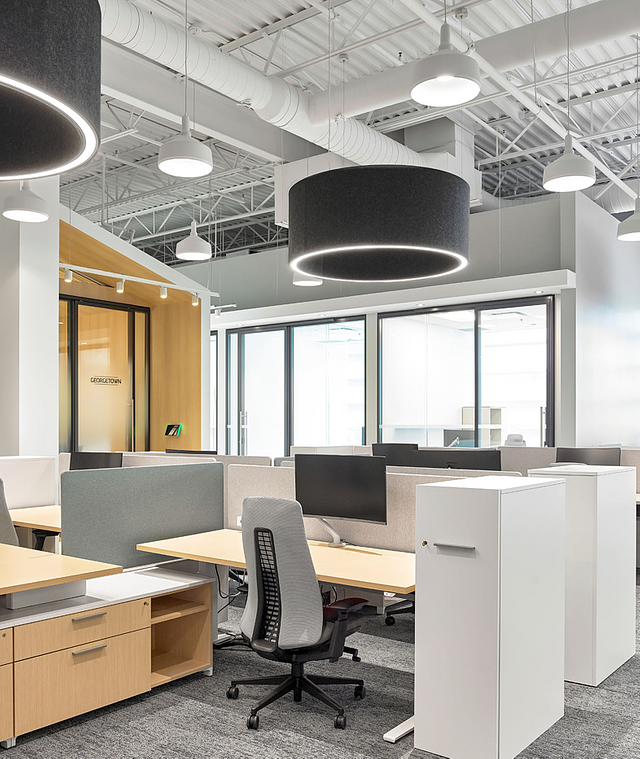

Inspiration
