ED TS+

Architectural Adjustable Square Downlight

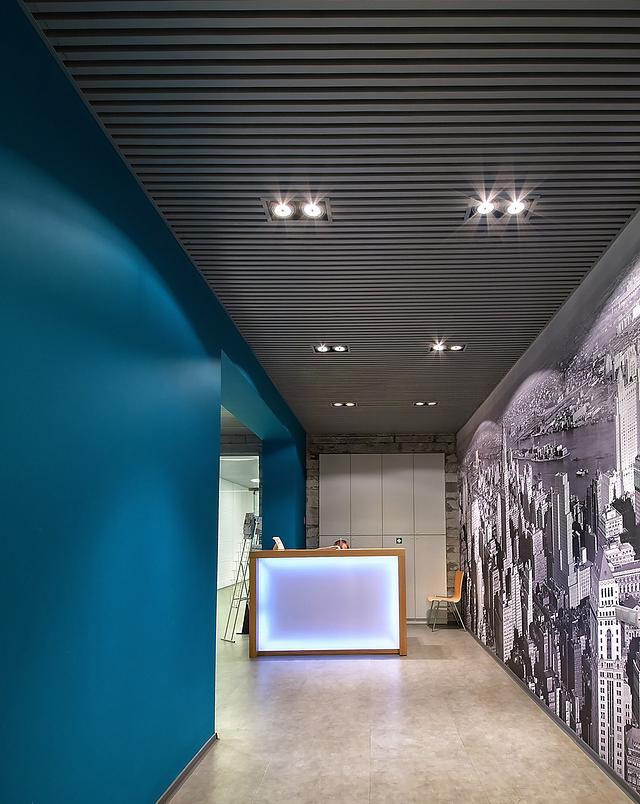

Architectural luminaire with direct lighting distribution Light source: COB LED High efficiency metalized integral reflector comes in following beam angles: Narrow Spot 10º, Spot 25º and Flood 40º Adjustable trim assembly can be tilted up to 25º in both directions Available with optional flat frame plate for NC installations Suitable for recessed non insulated ceilings and dry locations LED spot is rated for 60,000hrs. L70 with +85 CRI Has a proven record in office, commercial and retail installations Custom modifications are available ED luminaires are certified to CSA and UL Standards
Specification Sheet

Resources

Specsheets


Photometry


Materials

  • Metal

Shape

  • Square

Color / Finish

  • Black
  • Gray
  • White

Lumens

  • 1050 Lm
  • 1070 Lm
  • 1090 Lm
  • 1570 Lm
  • 1605 Lm
  • 1640 Lm
  • 2090 Lm
  • 2145 Lm

Watts

  • 10 w
  • 15 w
  • 20 w

Adjustability

  • Tilt Optics

Beam Angle

  • 25
  • 40

CCT

  • 3000K
  • 3500K
  • 4000K

CRI

  • 85 CRI
  • 90 CRI

Circuit

  • Single Circuit

Dimming Protocol

  • 0-10 V
  • ELV
  • Triac

Dimming Range

  • 1%
  • 10%

Distribution

  • Narrow

Installation Type

  • New Construction
  • Retrofit & Remodel

Lamp Life

  • 60000 hrs

Lamp Source

  • LED

Listings

  • cULus

Ratings & Compliance

  • Dry
  • Made in Canada

Trim Finish

  • Black
  • Gray
  • White

Trim Type

  • Downlight
  • Regressed
  • Wall Wash

Voltage

  • 120 V
  • 277 V
  • 347 V

Warranty

  • 5 yr
